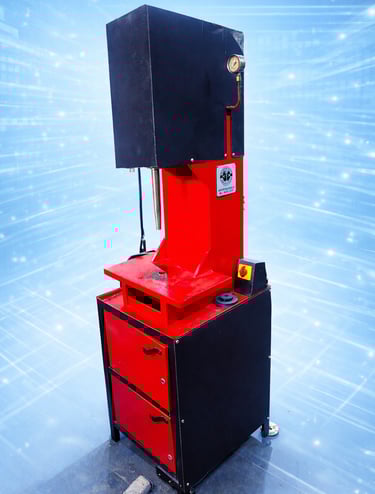

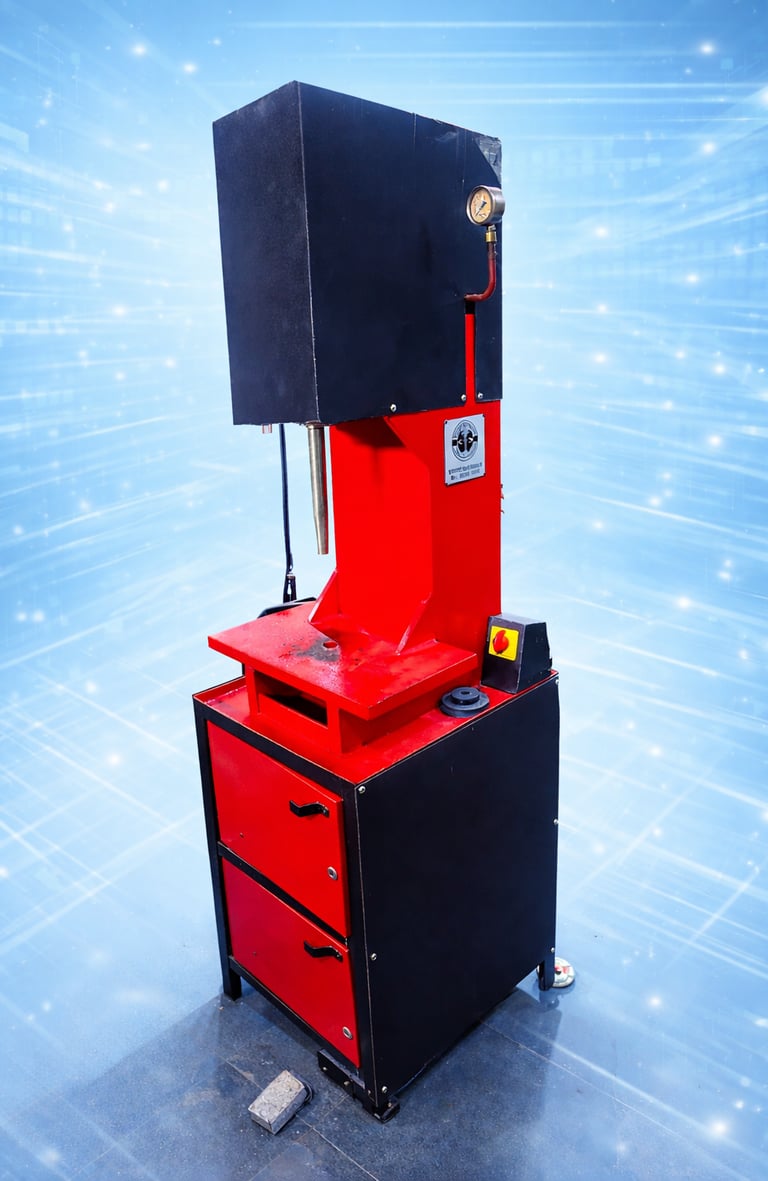

C-Type Hydraulic Press Machine

(40 ton)

Product Description

• The 40 Ton C-Type Hydraulic Press is an industrial pressing machine used to apply controlled compressive force on metal or non-metal components for forming, bending, punching, straightening, and assembly operations.


• The machine has a C-shaped (single column) frame providing a three-side open working area for easy loading and unloading of the workpiece.


• It operates on Pascal’s Law where hydraulic oil pressure moves the piston (ram) to produce pressing force.

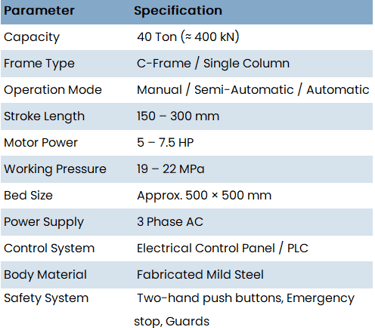

Technical Specifications

Main Components

• Hydraulic cylinder and ram

• Hydraulic pump and electric motor

• Oil tank and filters

• Pressure gauge and control valves

• Electrical control panel

• C-type steel frame

• Bed/bolster plate

• Safety guards and limit switches

Working Operation

• Electric motor drives the hydraulic pump

• Pump generates oil pressure

• Pressurized oil enters the cylinder

• Ram moves downward and presses the workpiece

• After operation, ram returns upward


Applications

• Sheet metal bending and forming

• Punching and piercing

• Bearing and bush fitting

• Riveting and crimping

• Rubber and plastic molding

• Straightening operations

• Component assembly

Advantages

• Full force available at any stroke position

• Smooth and vibration-free operation

• Energy efficient

• Better control compared to mechanical press

• Suitable for small and medium industries

  Limitations

• Not suitable for heavy forging operations

• Less rigid than H-frame press

• Limited throat depth
